In this article we take you through the steps to submit form registration data from LeadCapture.io to a LeadByte Campaign using their LeadByte integration to submit data using our rest API.

To successfully submit data to LeadByte you will need to:

- Have a LeadCapture account
- Generate an integration guide for your LeadByte Campaign

Step 1 - Create LeadCapture Form
On the 'Lead Forms' screen, click the '+ Create' button in the top right corner of the page. Create a form that collects the data you require.

Step 2 - Connect To LeadByte

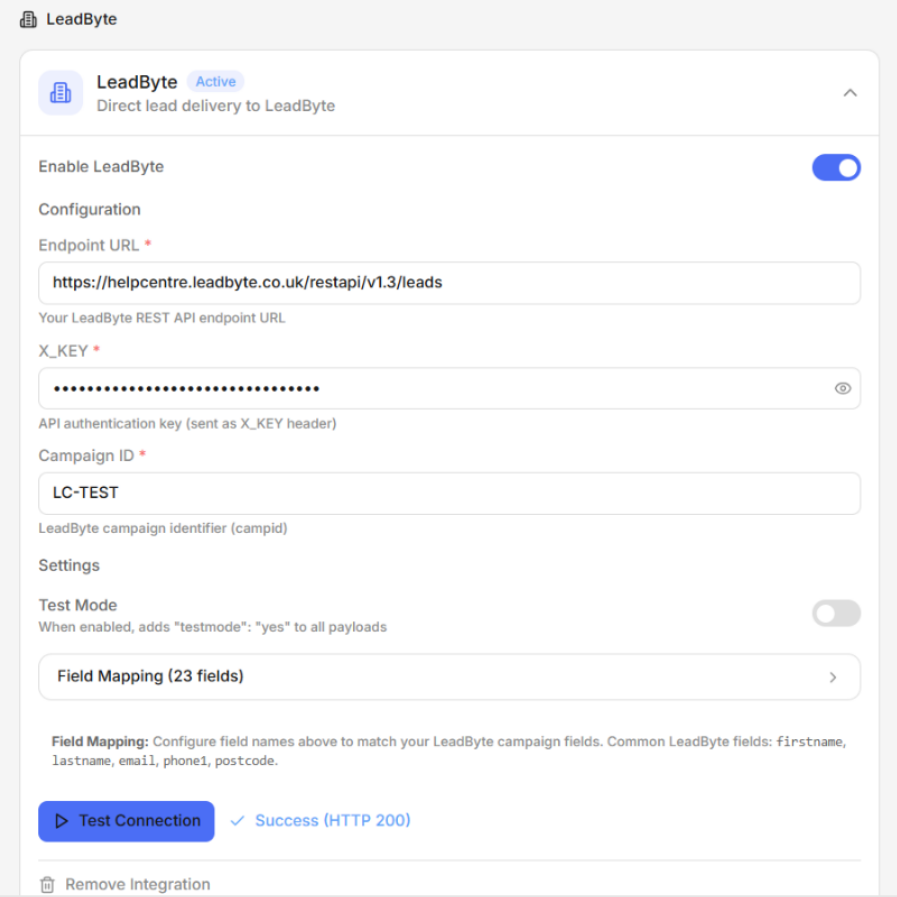

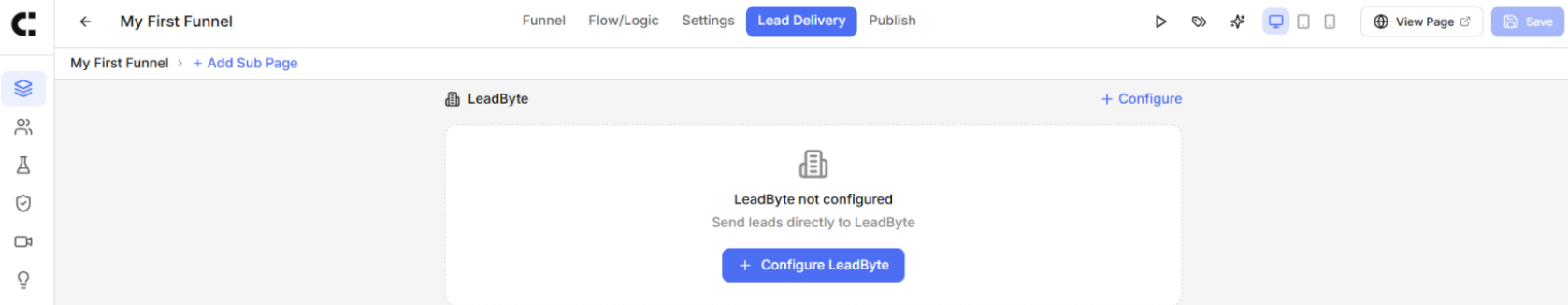

Click 'Lead Delivery' and under 'Email Service & CRM' click 'LeadByte' to expand it. On your campaign integration guide on LeadByte, using Optimised Rest API with the API key you'd like to use selected. Your API key just needs to have the 'Leads - Create' permission enabled. Enter the Post URL, the Camp ID and the X_KEY into Lead Capture. Save Changes

Step 3 - Map Fields

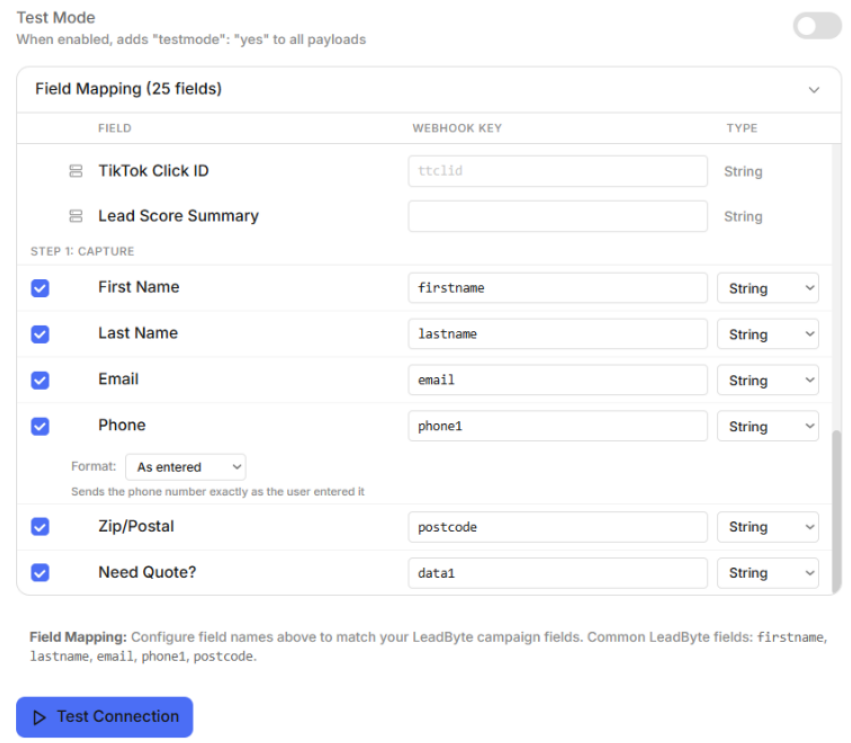

Click 'Steps' and for each field, click the pen to edit, scroll down and expand the 'Leadbyte' tab and type in the label of the field as it is on LeadByte. E.G for the 'phone' field you would type in 'phone1' as this is what the primary phone field is labelled on LeadByte.

For the example above the four fields being collected would need to have the 'LeadByte' box on LeadCapture matching the field between the square brackets.

Step 4 - Test
Once you have mapped your fields you should publish your form and test.  If you do not see the lead under your LeadByte "Leads" tab, remember to check your System Rejections tab in case the request was rejected.
